Singular Value Decomposition (SVD)

@(LinearAlgebra)

SVD

Given a rectangular matrix $A \in \mathbb{R}^{m \times n}$, its singular value decomposition is written as $$A = U \Sigma V^T$$

where

• $U \in \mathbb{R}^{m \times m}$, $V \in \mathbb{R}^{n \times n}$: matrices with orthonormal columns, providing an orthonormal basis of Col $A$ and Row $A$, respectively.
• $\Sigma \in \mathbb{R}^{m \times n}$: a diagonal matrix whose entries are in a decreasing order, i.e., $\sigma_1 \ge \sigma_2 \ge \cdots \ge \sigma_{min(m,n)}$

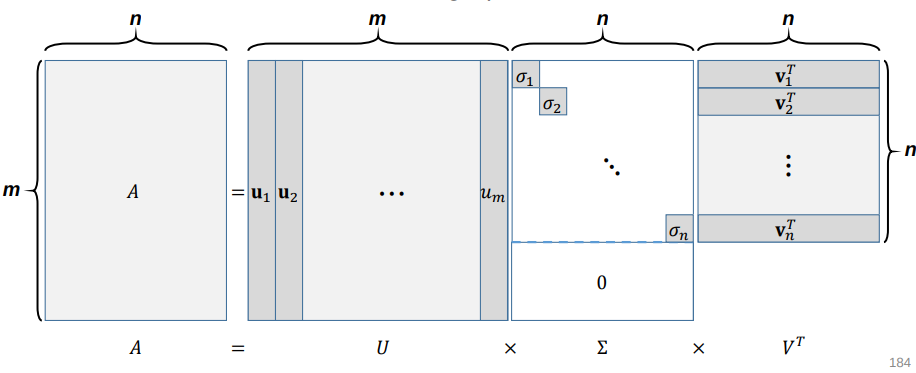

Basic Form of SVD

Given a rectangular matrix $A \in \mathbb{R}^{m \times n}$ where $m \le n$, SVD gives $$A = U \Sigma V^T$$

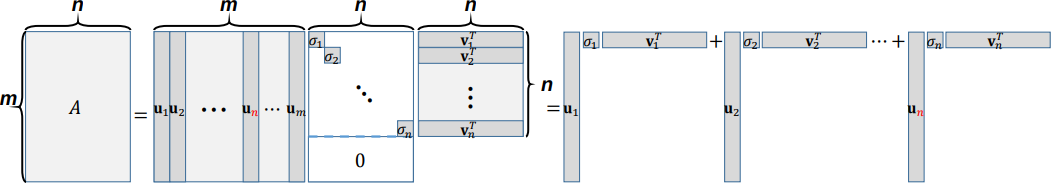

SVD as Sum of Rand 1 Outer Products

$A$ can also be represented as the sum of outer products $$A = U \Sigma V^T = \sum^n_{i=1} \sigma_i \textbf{u}_i\textbf{v}_i^T \text{, where } \sigma_1 \ge \sigma_2 \ge \cdots \ge \sigma_n$$

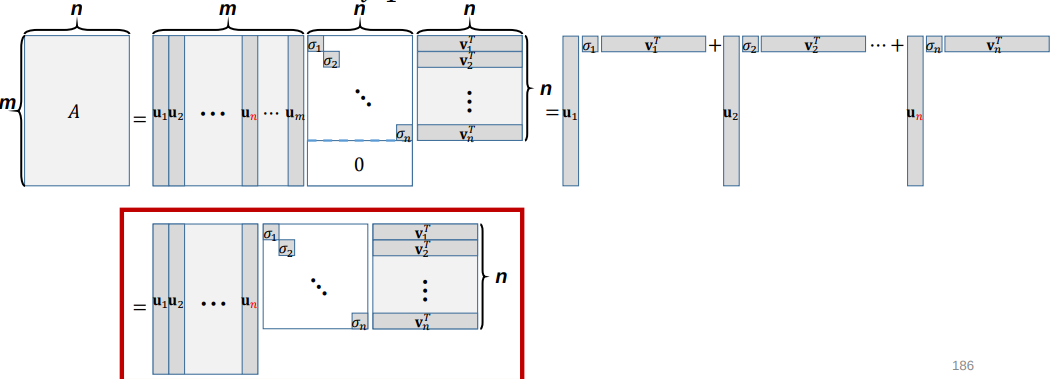

Reduced Form of SVD

$A$ can also be represented as the sum of outer products $$A = U \Sigma V^T = \sum^n_{i=1} \sigma_i \textbf{u}_i\textbf{v}_i^T \text{, where } \sigma_1 \ge \sigma_2 \ge \cdots \ge \sigma_n$$

Another Perspective of SVD

• We can easily find two orthonormal basis sets, $\left\{ \textbf{u}_1, \cdots, \textbf{u}_n\right\}$ for Col $A$ and $\left\{ \textbf{v}_1, \cdots, \textbf{v}_n\right\}$ for Row $A$, by using, say, Gram–Schmidt orthogonalization.
• Are these unique orthonormal basis sets?

• No. Then, can we jointly find them such that $$A\textbf{v}_i = \sigma_i \textbf{u}_i \text{, } \forall i = 1, \cdots, n$$

• Let us denote $U=\begin{bmatrix} \textbf{u}_1 & \textbf{u}_2 & \cdots & \textbf{u}_n\end{bmatrix} \in \mathbb{R}^{m\times n}$, $V=\begin{bmatrix} \textbf{v}_1 & \textbf{v}_2 & \cdots & \textbf{v}_n\end{bmatrix} \in \mathbb{R}^{n\times n}$, and $$\Sigma=\begin{bmatrix} \sigma_1 & 0 & \cdots & 0 \\ 0 & \sigma_2 & \ddots & \vdots \\ \vdots & \ddots & \ddots & 0 \\ 0 & \dots & 0 & \sigma_n \end{bmatrix} \in \mathbb{R}^{n\times n}$$

• Consider $AV=A\begin{bmatrix} \textbf{v}_1 & \textbf{v}_2 & \cdots & \textbf{v}_n\end{bmatrix}=\begin{bmatrix} A\textbf{v}_1 & A\textbf{v}_2 & \cdots & A\textbf{v}_n\end{bmatrix}$ and $$\begin{align*} U\Sigma &= \begin{bmatrix} \textbf{u}_1 & \textbf{u}_2 & \cdots & \textbf{u}_n\end{bmatrix}\begin{bmatrix} \sigma_1 & 0 & \cdots & 0 \\ 0 & \sigma_2 & \ddots & \vdots \\ \vdots & \ddots & \ddots & 0 \\ 0 & \dots & 0 & \sigma_n \end{bmatrix} \\ &= \begin{bmatrix} \sigma_1\textbf{u}_1 & \sigma_2\textbf{u}_2 & \cdots & \sigma_n\textbf{u}_n\end{bmatrix} \end{align*}$$
• $AV=U\Sigma \Leftrightarrow \begin{bmatrix} A\textbf{v}_1 & A\textbf{v}_2 & \cdots & A\textbf{v}_n\end{bmatrix}=\begin{bmatrix} \sigma_1 \textbf{u}_1 & \sigma_2 \textbf{u}_2 & \cdots & \sigma_n \textbf{u}_n \end{bmatrix}$
• $V^{-1} = V^T$ since $V \in \mathbb{n \times n}$ has orthonormal columns.
• Thus, $AV=U\Sigma \Leftrightarrow A = U\Sigma V^T$.

Computing SVD

• First, we form $AA^T$ and $A^TA$ and compute eigendecomposition of each: $$AA^T = U\Sigma V^T (U\Sigma V^T)^T = U\Sigma V^TV\Sigma^T U^T =U\Sigma\Sigma^T U^T= U\Sigma^2 U^T \\ A^TA = (U\Sigma V^T)^TU\Sigma V^T = V\Sigma^T U^TU\Sigma V^T =V\Sigma\Sigma^T V^T= V\Sigma^2 V^T$$
• Can we find the following?
  1. Orthogonal eigenvector matrices $U$ and $V$
  2. Eigenvalues in $\Sigma^2$ that are all positive
  3. Eigenvalues in $\Sigma^2$ that are shared by $AA^T$ and $A^TA$
• Yes, since $AA^T$ and $A^TA$ are symmetric positive (semi-)definite.

Symmetric Positive Definite Matrices and Spectral Decomposition

• If $S \in \mathbb{R}^{n \times n}$ is symmetric and positive-definite, then the spectral decomposition will have all positive eigvenvalues:

$$\begin{align*} S = UDU^T &= \begin{bmatrix} \textbf{u}_1 & \textbf{u}_2 & \cdots & \textbf{u}_n\end{bmatrix} \begin{bmatrix} \lambda_1 & 0 & \cdots & 0 \\ 0 & \lambda_2 & \ddots & \vdots \\ \vdots & \ddots & \ddots & 0 \\ 0 & \dots & 0 & \lambda_n \end{bmatrix} \begin{bmatrix} \textbf{u}_1^T \\ \textbf{u}_2^T \\ \vdots \\ \textbf{u}_n^T\end{bmatrix} \\ &= \lambda_1\textbf{u}_1\textbf{u}_1^T+\lambda_2\textbf{u}_2\textbf{u}_2^T+\cdots+\lambda_n\textbf{u}_n\textbf{u}_n^T \end{align*}$$

where $\lambda_j \ge 0, \forall j=1, \cdots, n$.

$A^TA$ and $AA^T$ are symmetric positive (semi-)definite!

• Symmetric: $$(AA^T)^T = AA^T \\ (A^TA)^T = A^TA \\ $$

• Positive (semi-)definite $$\textbf{x}^TAA^T\textbf{x} = (A^T\textbf{x})^T(A^T\textbf{x}) = ||A^T\textbf{x}||^2 \ge 0 \\ \textbf{x}^TA^TA\textbf{x} = (A\textbf{x})^T(A\textbf{x}) = ||A\textbf{x}||^2 \ge 0$$

• Thus, we can find

  1. Orthogonal eigenvector matrices $U$ and $V$.
  2. Eigenvalues in $\Sigma^2$ that are all positive

Things to Note

• Given any rectangular matrix $A \in \mathbb{R}^{m \times n}$, its SVD always exists.
• Given a square matrix $A \in \mathbb{R}^{n \times n}$, its eigendecomposition does not always exist, but its SVD always exists.
• Given a square, symmetric positive (semi-)definite matrix $S \in \mathbb{R}^{n \times n}$, its eigendecomposition always exists, and it is actually the same as its SVD.
