Least Squares

@(LinearAlgebra)

Summary

Motivations for Least Squares

• Commonly, in the over-determined system, there is no solution.
• Even if no solution exists, we want to approximately obtain the solution for the over-determined system.
• Least Squares provides the approximiation of the solution for the over-determined system.

What is Least Squares Problem

Given an over-determined system $A\textbf{x} \simeq \textbf{b}$ where $A \in \mathbb{R}^{m\times n}, \textbf{b} in \mathbb{R}^n$, and $m \gg n$, a least square solution $\hat{\textbf{x}}$ is defined as $\hat{\textbf{x}}= \text{arg } \underset{\textbf{x}} { \text{min }} \Vert \textbf{b}-A\textbf{x} \Vert$

• The most import aspect of the least-square problem is that no matter what $\textbf{x}$ is selected, the vector $A\textbf{x}$ will necessarily be in the column space Col $A$.
• Thus, the least square seeks for $\textbf{x}$ that makes $A\textbf{x}$ as the closet point in Col $A$ to $\textbf{b}$.

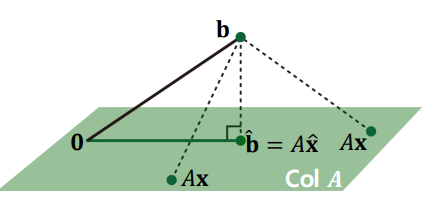

Geometric Interpretation of Least Squares

• Consider $\hat{\textbf{x}}$ such that $\hat{\textbf{b}} = A\hat{\textbf{x}}$ is the closet point to $\textbf{b}$ among all vectors in Col $A$.
• That is, $\textbf{b}$ is closer to $\hat{\textbf{b}}$ than $A\textbf{x}$ for any other $\textbf{x}$.
• To satisfy this, the vector $\textbf{b}-A\hat{\textbf{x}}$ should be orthogonal to Col $A$.

• This means $\textbf{b}-A\hat{\textbf{x}}$ should be orthogonal to any vector in Col $A$: $\textbf{b}-A\hat{\textbf{x}} \perp (x_1 \textbf{a}_1 + x_2 \textbf{a}_2 + \cdots +x_n \textbf{a}_n ) \text{ for any vector }\textbf{x}$

• Or equivalently, $\begin{matrix} \begin{matrix} (\textbf{b}-A\hat{\textbf{x}}) \perp \textbf{a}_1 \\ (\textbf{b}-A\hat{\textbf{x}}) \perp \textbf{a}_2 \\ \vdots\\ (\textbf{b}-A\hat{\textbf{x}}) \perp \textbf{a}_m \\ \end{matrix} \Rightarrow \begin{matrix} {\textbf{a}_1}^T (\textbf{b}-A\hat{\textbf{x}}) \\ {\textbf{a}_2}^T (\textbf{b}-A\hat{\textbf{x}}) \\ \vdots \\ {\textbf{a}_m}^T (\textbf{b}-A\hat{\textbf{x}}) \\ \end{matrix} \Rightarrow A^T(\textbf{b}-A\hat{\textbf{x}})=\textbf{0} \Rightarrow A^TA\hat{\textbf{x}})=A^T\textbf{b} \end{matrix}$

• Finally, given a least squares problem, $𝐴\textbf{𝐱} \simeq \textbf{b}$, we obtain $A^TA\hat{\textbf{x}}=A^T\textbf{b}$

  • which is called a normal equation.

• This can be viewed as a new linear system, $C\textbf{x}=\textbf{d}$, where a square matrix $C=A^TA \in \mathbb{R}^{n\times n}$, and $d=A^T\textbf{b} \in \mathbb{R}^n$.

• If $C = A^TA$ is invertible, then the solution is computed as $\hat{\textbf{x}} = (A^TA)^{-1}A^T\textbf{b}$

Another Derivation of Normal Equation.

$\begin{align} \hat{\textbf{x}} &= \text{arg } \underset{\text{x}}{\text{min}} \Vert \textbf{b}-A\textbf{x} \Vert\\ &=\text{arg } \underset{\text{x}}{\text{min} } \Vert \textbf{b}-A\textbf{x} \Vert ^2\\ &=\text{arg } \underset{\text{x}}{\text{min} } (\textbf{b}-A\textbf{x} )^T(\textbf{b}-A\textbf{x})\\ &= \textbf{b}^T\textbf{b} - \textbf{x}^T A^T \textbf{b} - \textbf{b}^T A \textbf{x} + \textbf{x}^T A^T A \textbf{x} \end{align}$

• Computing derivatives with regard to $\textbf{x}$, we obtain $- A^T \textbf{b} - A^T \textbf{b} + 2 A^T A \textbf{x} =\textbf{0} \Leftrightarrow A^T A \textbf{x} = A^T \textbf{b}$

• Thus, if $C=A^TA$ is invertible, then the solution is computed as $\textbf{x} = (A^T A)^{-1} A^T \textbf{b}$

• $C=A^TA$ is always invertible! So, we can always approximate the solution, $\hat{x}$.

• $n$차 방정식이 항상 $n$개의 complex solution 가짐.
• $n$ dimensional square matrix has $n$ eigen values.
  • 중복된 eigen value를 개별로 셀 경우임.
• Matrix의 eigen vector들이 모두 linear independent일 경우, invertible 이며 diagonalizable임.
• Diagonalizable matrix의 eigen value에 0인 경우가 없을시 항상 invertible.
• Symmetric matrix의 경우, eigne value는 real number이며, eigen vector들은 모두 orthgonal임.
• Symmetric matrix의 경우, 항상 diagonalizable임.
• $A^T A$는 항상 symmetric matrix임.
• $A^T A$는 최소한 positive semi-definite이며, 만일 0인 eigen value가 없을시 positive definite임.
• Symmetric matrix가 positive definite인 경우, eigen value들은 모두 양수임. 즉 invertible하다.
• Symmetric matrix가 positive semi-definite인 경우, eigen value들은 0또는 양수임.

Orthogonal Projection Perspective

• In the case of invertible $C=A^TA$, consider the orthogonal projecton of $\textbf{b}$ onto Col $A$ as $\hat{\textbf{b}}=f(\textbf{b})=A\hat{\textbf{x}}= A (A^TA)^{-1}A^T \textbf{b}$

• Suppose that Col $A$ is a 2-dimensional subspace , consider a transformation of orthogonal projection $\hat{\textbf{b}}$ of $\textbf{b}$, given orthonomal basis $\left\{ \textbf{u}_1,\textbf{u}_2 \right\}$ of Col $A$: $\begin{align} \hat{\textbf{b}} &= f(\textbf{b}) \\ &=A\hat{\textbf{x}} \\ &= A (A^TA)^{-1}A^T \textbf{b} \\ &= (\textbf{b} \cdot \textbf{u}_1)\textbf{u}_1 + (\textbf{b} \cdot \textbf{u}_2)\textbf{u}_2 \\ &= (\textbf{u}_1^T\textbf{b})\textbf{u}_1 + (\textbf{u}_2^T\textbf{b})\textbf{u}_2 \\ &= \textbf{u}_1(\textbf{u}_1^T\textbf{b}) + \textbf{u}_2(\textbf{u}_2^T\textbf{b}) \\ &= (\textbf{u}_1\textbf{u}_1^T)\textbf{b} + (\textbf{u}_2\textbf{u}_2^T)\textbf{b} \\ &= (\textbf{u}_1\textbf{u}_1^T + \textbf{u}_2\textbf{u}_2^T)\textbf{b} \\ &= \begin{bmatrix} \textbf{u}_1 & \textbf{u} _2\end{bmatrix}\begin{bmatrix} \textbf{u}_1^T \\ \textbf{u} _2^T\end{bmatrix} \textbf{b} \\ &=UU^T \textbf{b} \Rightarrow \text{linear transformation} \end{align}$

• When $A=U=\begin{bmatrix} \textbf{u}_1 & \textbf{u} _2\end{bmatrix}$ has orthonomal columns: $C=A^TA=\begin{bmatrix} \textbf{u}_1^T \\ \textbf{u} _2^T\end{bmatrix} \begin{bmatrix} \textbf{u}_1 & \textbf{u} _2\end{bmatrix}=I$

• Thus, $\begin{align} \hat{\textbf{b}} &= f(\textbf{b}) \\ &=A\hat{\textbf{x}} \\ &= A (A^TA)^{-1}A^T \textbf{b} \\ &= A (I)^{-1}A^T \textbf{b} \\ &= A A^T \textbf{b} \\ &= U U^T \textbf{b} \\ \end{align}$
